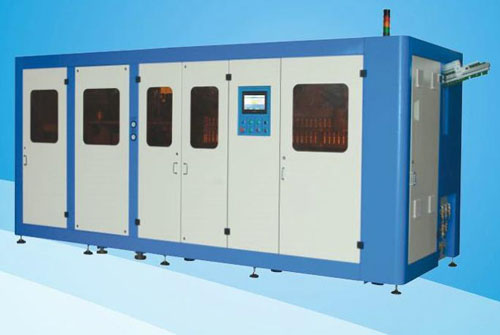

HTP-S1
Item
Parameters
Unit
Container
Max Container volume
L
5
Max Inlet outer Diameter
mm
120
Max Container Diameter
180
Max Container Height
350
Number Of Cavities
PC
1
Theoretical Output
Bph
800(*)
Electrical
Installed Power
KW
31
Max Heating Power
30
Compressed air
Operating Pressure
Mpa
0.8
Low Pressure Air Consuming
L/min
800
Blowing Pressure
3
High Pressure Air Consuming
900
Chiller Water
Pressure
0.3¡ª0.5
Temperature
¡æ
10¡ª12
Flow Rate
25
Machine Dimension
Size(L¡ÁW¡ÁH)
M
2.5¡Á1.5¡Á2
Weight
KG
2500
