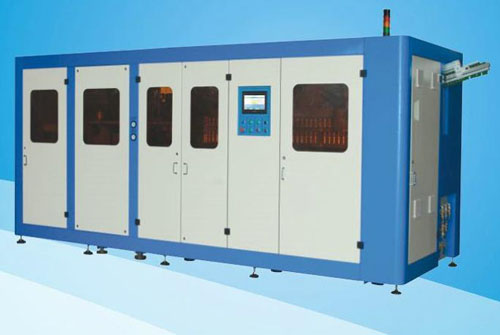

HTP-S3
Item
Parameters
Unit
Container
Max Container volume
L
1.5
Max Inlet outer Diameter
mm
38
Max Container Diameter
95
Max Container Height
320
Number Of Cavities
PC
2
Theoretical Output
Bph
2000(*)
Electrical
Installed Power
KW
37
Max Heating Power
34
Compressed air
Operating Pressure
Mpa
0.7
Low Pressure Air Consuming
L/min
1400
Blowing Pressure
3.5
High Pressure Air Consuming
2000¡ª3000(**)
Chiller Water
Pressure
0.3¡ª0.5
Temperature
¡æ
10¡ª12
Flow Rate
30
Machine Dimension
Size(L¡ÁW¡ÁH)
M
2.7¡Á1.78¡Á2.03
Weight
KG
3000
