| Parameters： |

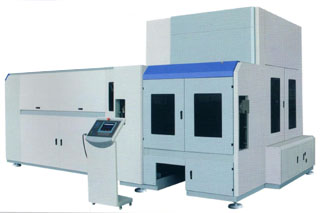

HTP-R16 Specifications
|
Item |
Parameters |
Unit |
HTP-R16 |
|
Container |
Max Container volume |
L |
0.65 |
|
Max Inlet outer Diameter |
mm |
28 |
|
Max Container Diameter |
mm |
65 |
|
Max Container Height |
mm |
250 |
|
Number of Cavities |
PET |
16 |
|
Theoretical Output |
500ml,Bph |
17000 |
|
Electrical |
Installed Power |
KW |
4 |
|
Max Heating Power |
KW |
250 |
|
Compressed air |
Operating Pressure |
Mpa |
0.8 |
|
Low Pressure Air Consuming |
L/min |
7000 |
|
Blowing Pressure |
Mpa |
3.8 |
|
High Pressure Air Consuming |
L/min |
16000 |
|
Chiller Water |
Pressure |
Mpa |
0.3-0.5 |
|
Temperature |
℃ |
10-12 |
|
Flow Rate |
L/min |
30 |
|
Machine Dimension |
Size(L×W×H) |
M |
2.3×3.15×2.6 |
|
Weight |
KG |
19000 | |
|
