SYSTEM

ITEM

UNIT

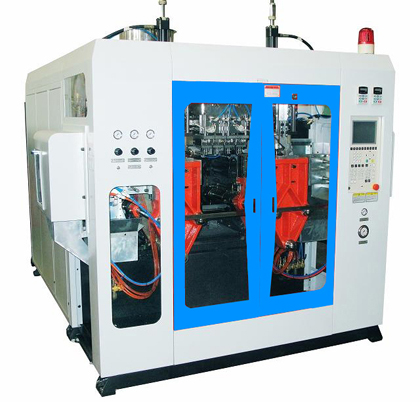

HTB-75

Parameters

Material

PE PP ABS

Max container capacity

L

20

Output(dry cycle)

Pc/hr

400

Machine dimension(LxWxH)

M

4.1X2.3X3.6

Total weight

T

9

Clamping system

Clamping force

KN

176

Platen opening stroke

mm

250-700

Platen size

mm

720X600

Max mould size(WxH)

mm

440X650

Mould thickness

mm

250-350

Overall dimension(LxWxH)

M

4.0X1.6X1.85

Extrusion system

Screw Dia

mm

75

Screw L/D ratio

L/D

24

Plasticzing capacity(HDPE)

Kg/hr

90

Number of heating zone

zone

4

Extruder heating power

KW

20.2

EXtruder driving power

KW

30

Overall dimension(LxWxH)

M

3.8X1.85X1.2

Die head

Number of heating zone

zone

4

Power of die heating

KW

15.2

Max die-pin diameter

mm

250

Accumlator capacity

L

5

Overall dimension ess(LxWxH)

M

1.9X0.65X0.52

Power

Max drive

KW

52

Total power

KW

65

Fan power for screw

KW

0.9

Air pressure

Mpa

0.8

Air consumption

M3/min

0.6

Average energy consumption

KW

32
