SYSTEM

ITEM

UNIT

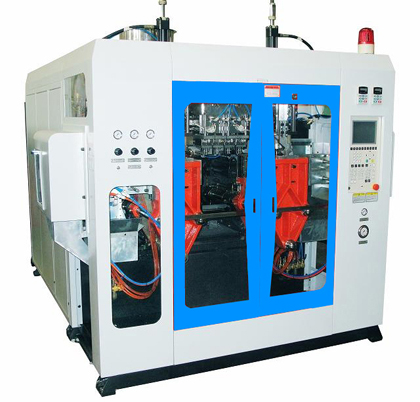

HTB-90

Parameters

Material

..

Max container capacity

L

60

Output(dry cycle)

Pc/hr

360

Machine dimension(LxWxH)

M

5.7X2.6X4

Total weight

T

12

Clamping system

Clamping force

KN

300

Platen opening stroke

mm

450-1050

Platen size

mm

980X950

Max mould size(WxH)

mm

720X1200

Mould thickness

mm

460-600

Overall dimension(LxWxH)

M

5.7X1.5X1.9

Extrusion system

Screw Dia

mm

90

Screw L/D ratio

L/D

24

Plasticzing capacity(HDPE)

Kg/hr

130

Number of heating zone

zone

4

Extruder heating power

KW

21.4

EXtruder driving power

KW

37

Overall dimension(LxWxH)

M

4.3X2.0X1.6

Die head

Number of heating zone

zone

4

Power of die heating

KW

21.3

Max die-pin diameter

mm

350

Accumlator capacity

L

6.6

Overall dimension ess(LxWxH)

M

2.15X0.9X0.55

Power

Max drive

KW

74

Total power

KW

89

Fan power for screw

KW

0.5

Air pressure

Mpa

1

Air consumption

M3/min

0.8

Average energy consumption

KW

40
