SYSTEM |
ITEM |
UNIT |

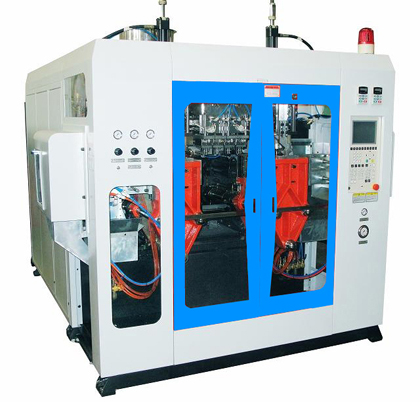

HTB-90D |
|
Parameters |
Material |
|
PE PP PVC PA |
|
Max container capacity |
L |
10 |
|
Number of heating zone |
SET |
1.2 |
|
Output(dry cycle) |
Pc/hr |
320 |
|
Machine dimension(LxWxH) |
M |
4.6x3.4x2.8 |
|
Total weight |
T |
8 |
|
Clamping system |
Clamping force |
KN |
95 |
|
Platen opening stroke |
mm |
200-600 |
|
Platen size |
mm |
540x450 |
|
Max mould size(WxH) |
mm |
580x470 |
|
Mould thickness |
mm |
210-330 |
|
Extrusion system |
Screw Dia |
mm |
90 |
|
Screw L/D ratio |
L/D |
24 |
|
Plasticzing capacity(HDPE) |
Kg/hr |
120 |
|
Number of heating zone |
zone |
4 |
|
Extruder heating power |
KW |
21.4 |
|
Extruder driving power |
KW |
37 |
|
Die head |
Number of heating zone |
zone |
3 |
|
Power of die heating |
KW |
5.7 |
|
Max die-pin diameter |
mm |
180 |
|
Center distance of double die |
mm |
250 |
|
Center distance of tri-die |
mm |
.. |
|
Center distance of tetra-die |
mm |
.. |
|
Power |
Max drive |
KW |
67 |
|
Total power |
KW |
78 |
|
Fan power for screw |
KW |
0.6 |
|
Air pressure |
Mpa |
01 |
|
Air consumption |
M3/min |
0.9 |
|
Average energy consumption |
KW |
31 |
