SYSTEM

ITEM

UNIT

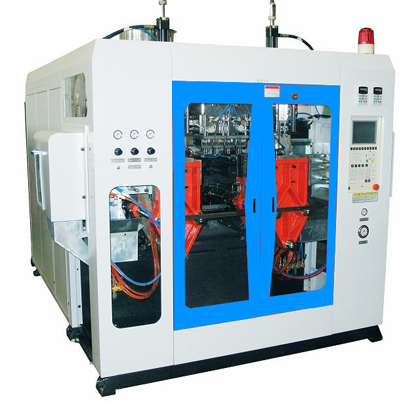

HTB-100N

Parameters

Material

PE PP ABS

Max container capacity

L

120

Output(dry cycle)

Pc/hr

300

Machine dimension(LxWxH)

M

6.8X3.3X5.0

Total weight

T

19

Clamping system

Clamping force

KN

440-880

Platen opening stroke

mm

600-1400

Platen size

mm

1100X1100

Max mould size(WxH)

mm

900X1400

Mould thickness

mm

610-750

Overall dimension(LxWxH)

M

6.8X2.2X2.4

Extrusion system

Screw Dia

mm

100

Screw L/D ratio

L/D

24

Plasticzing capacity(HDPE)

Kg/hr

150

Number of heating zone

zone

5

Extruder heating power

KW

25.1

EXtruder driving power

KW

45

Overall dimension(LxWxH)

M

4.8X2.32X1.6

Die head

Number of heating zone

zone

5

Power of die heating

KW

26

Max die-pin diameter

mm

450

Accumlator capacity

L

12

Overall dimension ess(LxWxH)

M

2.45X1.0X0.64

Power

Max drive

KW

90

Total power

KW

108

Fan power for screw

KW

0.6

Air pressure

Mpa

0.8

Air consumption

M3/min

0.8

Average energy consumption

KW

51
