SYSTEM

ITEM

UNIT

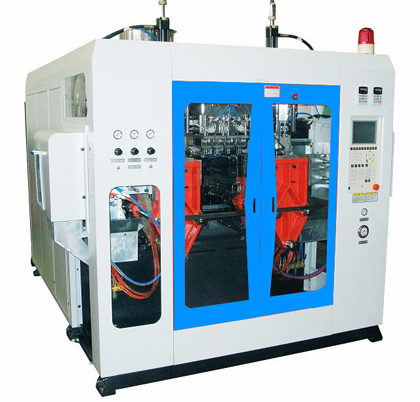

HTB-120

Parameters

Material

PE PP ABS

Max container capacity

L

160

Output(dry cycle)

Pc/hr

300

Machine dimension(LxWxH)

M

7.5X3.3X5.7

Total weight

T

22

Clamping system

Clamping force

KN

680X1360

Platen opening stroke

mm

600-1400

Platen size

mm

1400X1600

Max mould size(WxH)

mm

1200X1900

Mould thickness

mm

610-750

Overall dimension(LxWxH)

M

7.5X2.2X2.9

Extrusion system

Screw Dia

mm

120

Screw L/D ratio

L/D

30

Plasticzing capacity(HDPE)

Kg/hr

230

Number of heating zone

zone

5

Extruder heating power

KW

32

EXtruder driving power

KW

90

Overall dimension(LxWxH)

M

5.6X2.32X1.3

Die head

Number of heating zone

zone

6

Power of die heating

KW

39

Max die-pin diameter

mm

500

Accumlator capacity

L

20

Overall dimension ess(LxWxH)

M

2.7X1.1X0.7

Power

Max drive

KW

135

Total power

KW

206

Fan power for screw

KW

0.72

Air pressure

Mpa

1

Air consumption

M3/min

1

Average energy consumption

KW

95
