SYSTEM
ITEM
UNIT

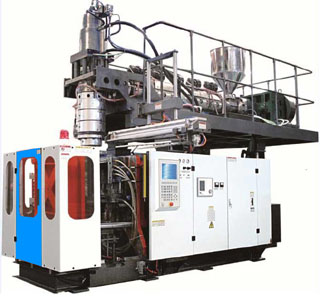

HBB-85
Material
PE PP PVC PA
Max container capacity
L
30
Number of die head
SET
1
Output(dry cycle)
Pc/hr
1500
Machine dimension(LxWxH)
M
4.8x2.6x3.5
Total weight
T
14
Clamping system
Clamping force
KN
280
Platen opening stroke
mm
400-900
Platen size
280x370
Max mould size(WxH)
600×1000
Mould thickness
500
Extrusion system
Screw Dia
85
Screw L/D ratio
L/D
24
Plasticzing capacity(HDPE)
Kg/hr
130
Number of heating zone
zone
4
Extruder heating power
KW
EXtruder driving power
37
Die head
Power of die heating
20
Max die-pin diameter
250
Parison control point
100
Die head forward and backwardstroke
450..
Parison control hydraulic pump power
kw
Power
pump driven power
22
Total power
115
Fan power for screw
0.25
Air pressure
Mpa
1.0
Air consumption
M3/min
1.5
Average energy consumption
50
