SYSTEM

ITEM

UNIT

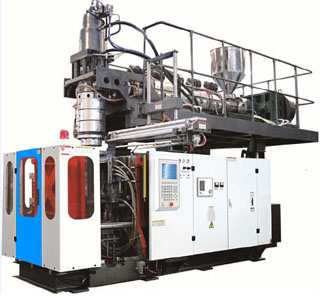

HBB-100

Material

PE PP PVC PA

Max container capacity

L

120

Number of heating zone

SET

1

Output(dry cycle)

Pc/hr

1000

Machine dimension(LxWxH)

M

6.0x3.0x4.5

Total weight

T

17

Clamping system

Clamping force

KN

360

Platen opening stroke

mm

500-1200

Platen size

mm

320x370

Max mould size(WxH)

mm

950x1400

Mould thickness

mm

700

Extrusion system

Screw Dia

mm

100

Screw L/D ratio

L/D

25

Plasticizing capacity(HDPE)

Kg/hr

180

Number of heating zone

zone

5

Extruder heating power

KW

30

Extruder driving power

KW

75

Die head

Number of heating zone

zone

5

Power of die heating

KW

25

Max die-pin diameter

mm

450

Parison control point

qty

100

hydraulic pump power

kw

4

Power

Pump driven power

KW

30

Total power

KW

175

Fan power for screw

KW

0.25

Air pressure

Mpa

1.0

Air consumption

M3/min

2.0

Average energy consumption

KW

75
