SYSTEM |
ITEM |
UNIT |

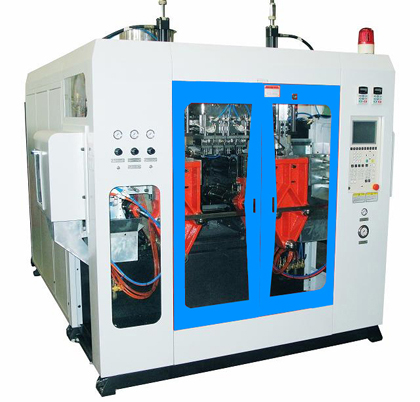

HTB-S2 |
|
Parameters |
Material |
|
PE PP PVC PA |
|
Max container capacity |
L |
2 |
|
Number of heating zone |
SET |
1.2.3.4 |
|
Output(dry cycle) |
Pc/hr |
1000X2 |
|
Machine dimension(LxWxH) |
M |
2.7x2.3x2.5 |
|
Total weight |
T |
3.5 |
|
Clamping system |
Clamping force |
KN |
38 |
|
Platen opening stroke |
mm |
130-370 |
|
Platen size |
mm |
280x370 |
|
Max mould size(WxH) |
mm |
350x370x205x600 |
|
Mould thickness |
mm |
135-210 |
|
Extrusion system |
Screw Dia |
mm |
55 |
|
Screw L/D ratio |
L/D |
24 |
|
Plasticzing capacity(HDPE) |
Kg/hr |
50 |
|
Number of heating zone |
zone |
3 |
|
Extruder heating power |
KW |
11.6 |
|
Extruder driving power |
KW |
15 |
|
Die head |
Number of heating zone |
zone |
2 |
|
Power of die heating |
KW |
4.2 |
|
Max die-pin diameter |
mm |
75 |
|
Center distance of double die |
mm |
130 |
|
Center distance of tri-die |
mm |
110 |
|
Center distance of tetra-die |
mm |
75 |
|
Power |
Max drive |
KW |
20.5 |
|
Total power |
KW |
26 |
|
Fan power for screw |
KW |
0.25 |
|
Air pressure |
Mpa |
0.6 |
|
Air consumption |
M3/min |
0.4 |
|
Average energy consumption |
KW |
15 |
